Agricultural Piping
Polyester Fiber Reinforced PVC Hose
Product Structure:

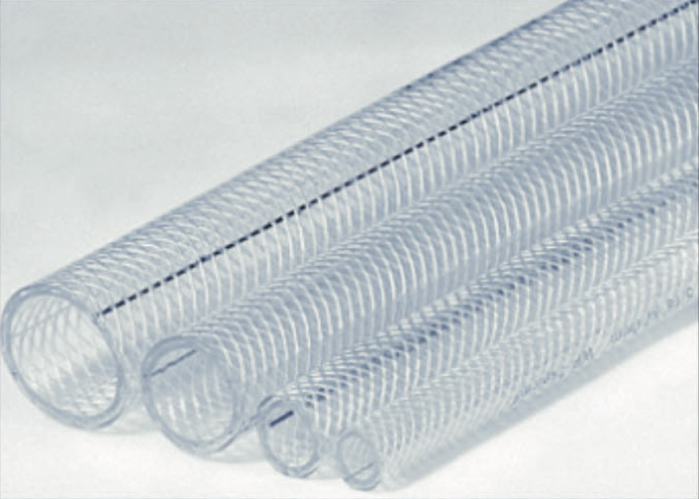

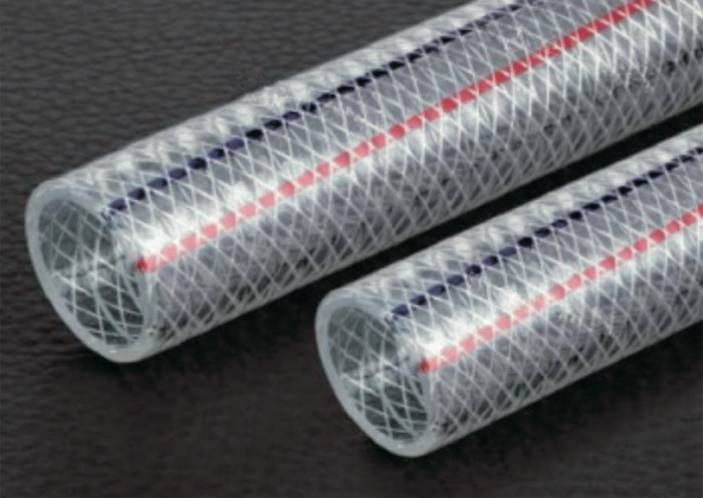

This product features a three-layer structure, with the inner and outer layers made of soft PVC, and a middle layer consisting of a mesh-like reinforcement formed by bidirectional winding of high-strength polyester yarn.
Product Features and Applications:
- The unique formulation of polyester-reinforced soft PVC resin has been optimized to give polyester-reinforced products superior performance in corrosion resistance, aging resistance, abrasion resistance, and resilience compared to similar products.
- Imported European equipment and world-leading process technology ensure that our products are exceptional in both quality and consistency.
- Professionally designed mesh reinforcement layer allows the product to meet various pressure requirements more effectively.
- Lead-free formulation meets international standards for food-grade hygiene.
- The product is extremely flexible and can be easily coiled and uncoiled in environments ranging from -10°C to 65°C for convenient use.
- Lightweight and pressure-resistant, products can be customized to user requirements within a burst pressure range of 15 kg/cm² to 140 kg/cm².
- Recyclable and environmentally friendly, with no pollution during production, installation, or use—making it a truly green product.
Product Series:
The product is lightweight, highly transparent, and flexible. It is widely used in various fields such as industry, agriculture, and construction for water supply and drainage, as well as the transport of other liquids and gases.
Depending on the pressure requirements of different application areas, you can choose from products with different working pressures:
- Type I: Standard pressure (general water supply hose)
- Type II: Medium-high pressure (universal hose)
- Type III: High-pressure mesh pipe

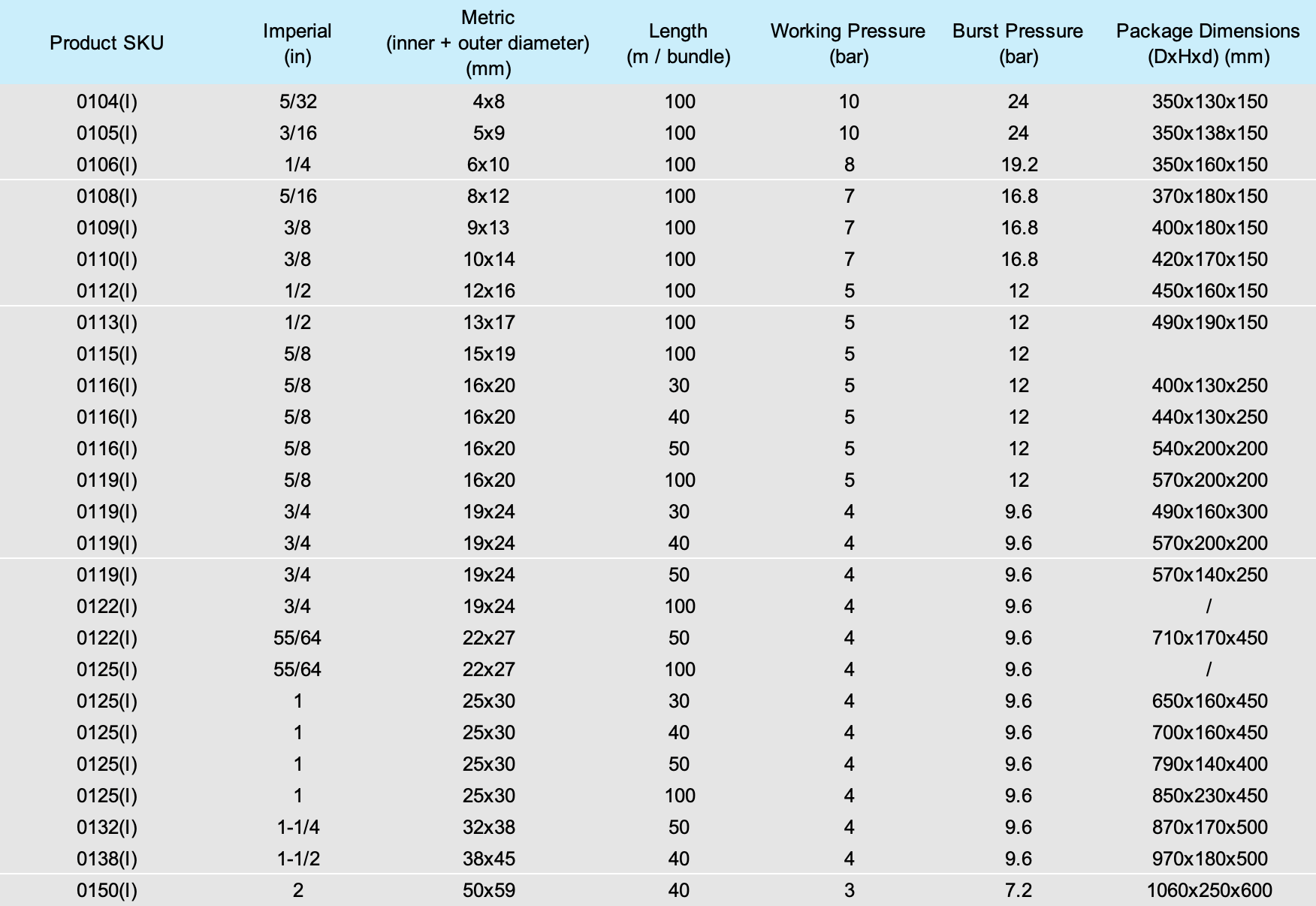

Product Specifications:
Type I Transparent Mesh Pipe
