At Banline, we present our Vehicle-Mounted Camera, a state-of-the-art imaging solution designed for automotive applications. Engineered for superior performance and durability, this camera delivers high-quality visuals and reliable functionality in diverse conditions.

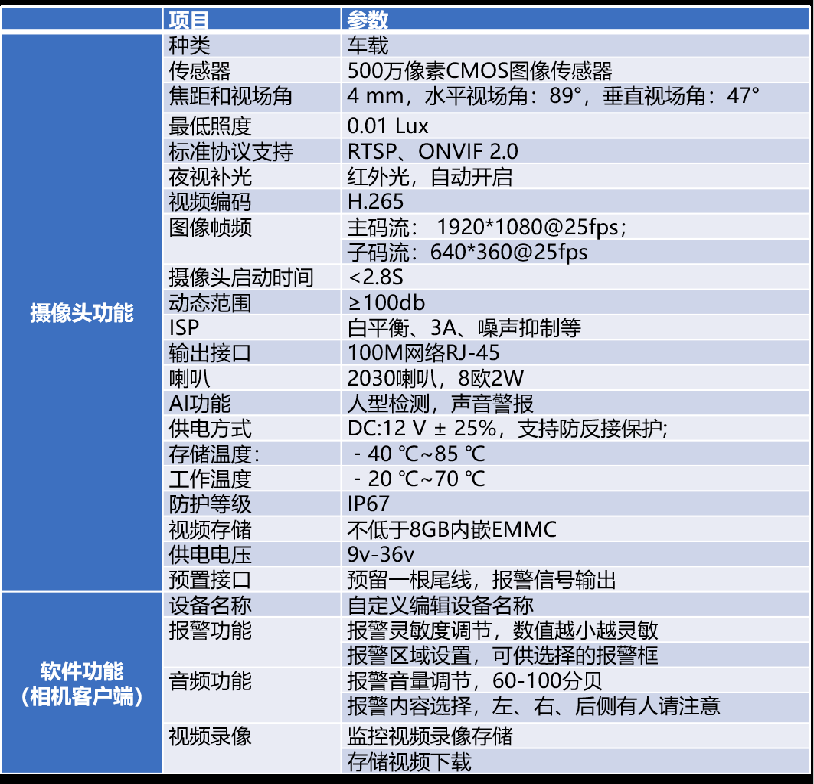

Key Specifications Include:

Lens: 5 million pixel CMOS image sensor
Focal Length and Field of View: 4 mm focal length; 89° horizontal field of view; 47° vertical field of view
Minimum Illumination: 0.01 Lux
Dynamic Range Support: RTSP, ONVIF 2.0
Resolution and Frame Rate: H.265 encoding; Main stream: 19201080@25fps; Sub-stream: 640360@25fps
Maximum Frame Rate Before Motion Blur: ≤ 2.85
Processing Capability: ≥ 1000 dB
ISP: Embedded 3A, self-adaptive brightness adjustment
Interfaces: 100M Ethernet (RJ-45), infrared remote control
Power Supply: 2030 (mW), 8Ω/2W speaker, high-sensitivity microphone
Power Consumption: 3 W typical, high sensitivity
Operating Voltage: DC 12V ± 25%, dual-channel anti-interference chip
Operating Temperature: -40°C to 85°C
IP Rating: IP67
Storage: External 8GB internal EMMC
Power Supply Voltage: 9V to 36V

Other Features:

Supports one-button firmware upgrade and version number output
Automatically saves client logs for easy debugging and issue resolution
Retains log records for quick retrieval
High clarity, 60-100 minutes of recording
Supports cloud-based, local, and driver-assisted live viewing
On-Site Imaging Capability: Real-time recording and playback

With our Vehicle-Mounted Camera, we empower automotive systems with reliable, high-definition vision for enhanced safety and operational efficiency.
